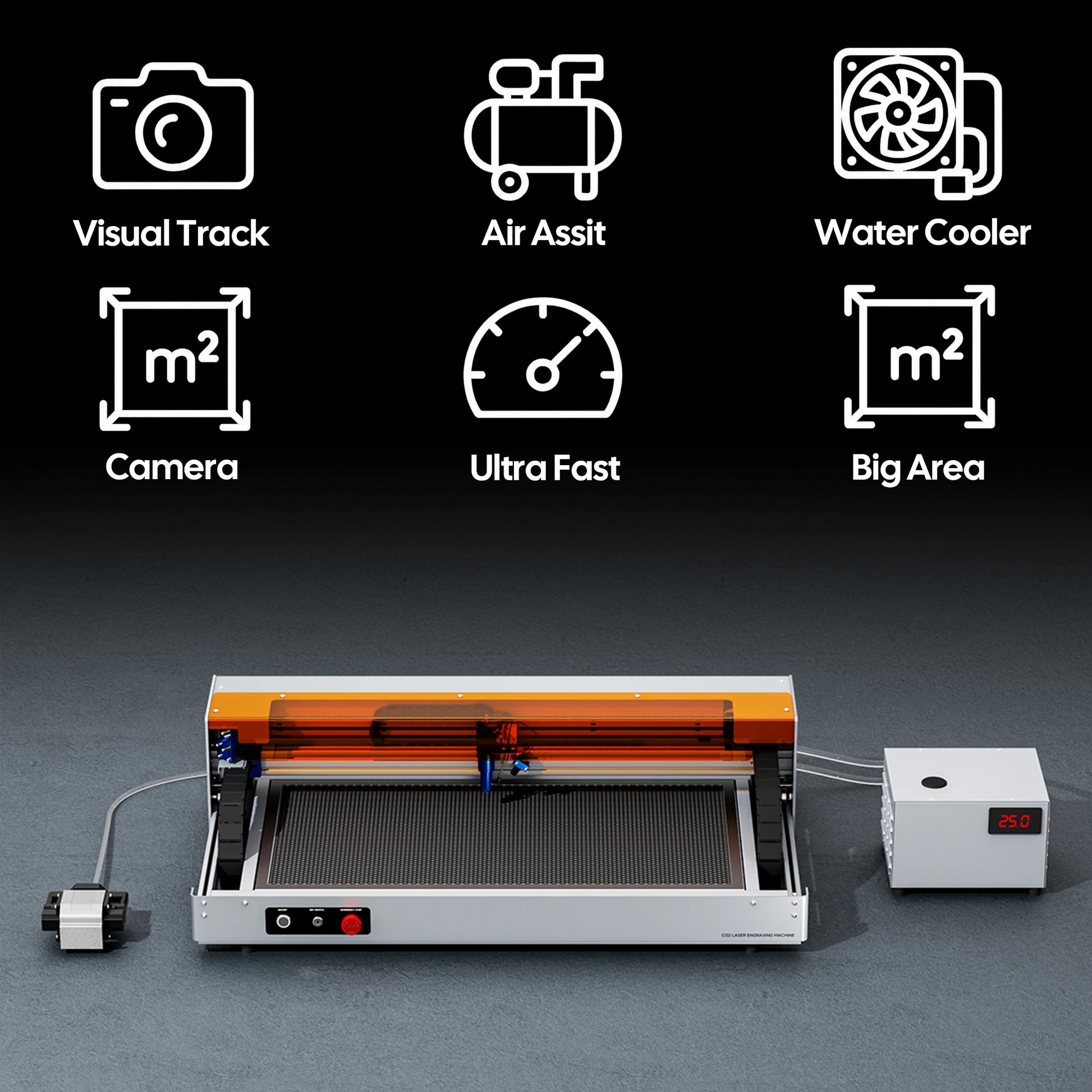

C1 LASER ENGRAVER

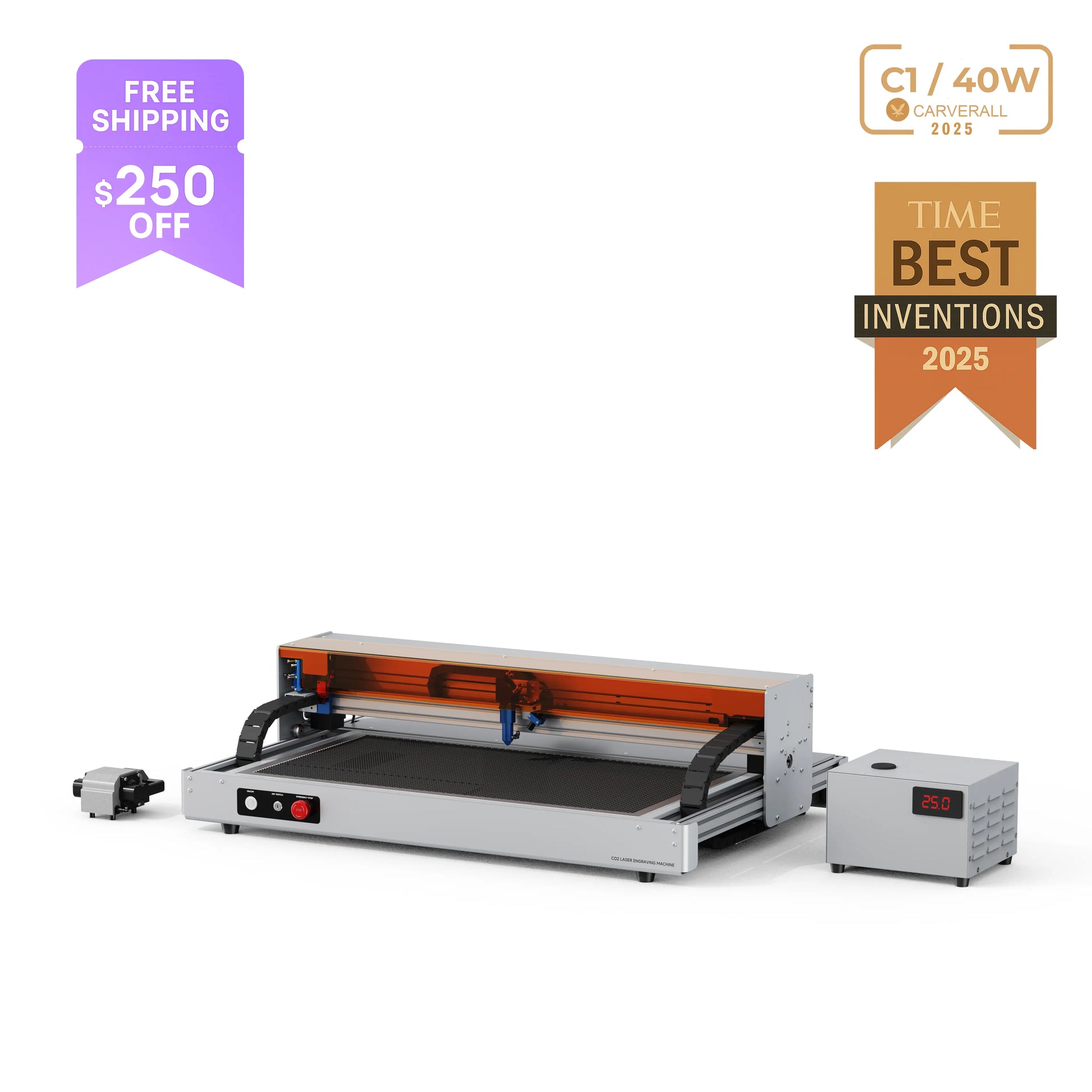

Carverall 40W Co2 Laser Cutter
C1
Dream Bold. Craft Real.
Create more, earn more...
Built for Performance
High-speed motion, micron-level accuracy, and an expansive work area — crafted for serious creators.
ACRYLICS
Colorful, transparent, and max 10mm...
WOODS
Solid wood, cork, plywood and max 15mm...
FABRICS
Cotton, denim, felt, canvas, and more...
See It. Align It. Cut It.
The smart camera scans your material and adjusts instantly for perfect results.
Big Work Area
Visual Tracking
Workable on more than 120+ materials
Acrylic
Wood
Bamboo
Paper
Stone
Metals
Glass
Fabric
Specifications
| Overall Design & Structure | |
|---|---|
| Frame Material | High-strength material (anodized aluminum), reinforced axis, reinforced transparent casing |
| Machine Size | 620 × 350 mm |
| Power Consumption | Mainframe: 315W; Water-cooling: 56W; Air-pump: 13W; Total: 384W |
| Engraving Precision | 0.01 mm |
| Cooling System | Water Cooling |
| Laser Head Size | 7 mm optical module |
| Laser Module | |
| Laser Type | CO₂ Glass Tube with stabilized power system and thermal control |
| Laser Power | 40W |
| Laser Wavelength | 10.6 μm |
| Beam Spot Size | 0.10 × 0.12 mm |
| Lifespan | ≥ 10,000 hours |
| Engraving Speed | 6000 mm/min |
| Optical Path | Dual-reflection + FR4 high-reflective mirror |
| Mainboard & Software | |
| Control Board |
CutLabX control platform & GRBL control system Supports: JPEG/BMP/JPG/GIF/PLT/PNG/CUTLABX Support Output: DXF/PLT/HPGL CNC/MC/BMP/JPG/PNG/DXF formats |
| Supported OS |
CutLabX (Windows & macOS) GRBL (Windows & macOS) Note: LaserGRBL does not officially support macOS |
| Air Pump & Power | |
| Air Pump Output | 56 L/min |
| Operating Voltage | 110V/220V (varies by region) |
| Motor | Stepper Motor |
| Motor Driver | Stepper motor driver chipset |
| Processor | 32-bit MCU |
| Reliability & Safety | |
| Safety Protection | Emergency stop button, limit switches, protection sensor circuitry |
| Positioning Accuracy | 6000 mm/min with 0.01 mm precision via step-motion structure |
| Smoke & Dust Protection | Enclosed structure with smoke–isolation protection |
| Functional Performance | |
| Engraving & Cutting Capability | Wood / Acrylic / Plastic / Leather / Paper / Fabric / Stone / Ceramic / Painted Metal / Transparent Materials |
| Max Engraving Height | 75 mm |
| Laser Spot Compression | Advanced compressor optics (≤ 0.10 mm; light spot ≤ 0.15 mm) |
| Stability | |
| Laser Stability | Constant-voltage power system, lifespan ≥ 10,000 hours |
| Mechanical Stability | Metal frame structure design |
| Laser Consistency | Long-term stable output performance |
| Compatibility | |
| Supported Formats | JPEG/BMP/PNG/JPG/GIF/PLT/HPGL/DXF |
| Appearance & Construction | |
| Design | Modern industrial design, clean appearance, ready to use |
| Product Weight & Packing | |
| Net Weight |
Machine: 16.22 kg Water Cooling: 3.65 kg Air Pump: 1.34 kg Honeycomb Panel: 3.78 kg Total: 25 kg |
| Machine Size | 900 × 640 × 251 mm |
| Packing Size | 1000 × 750 × 320 mm |
| Included Accessories | |
| Standard Accessories |
Goggles ×1, Wrench ×1 Cable set 150 × 150 × 3 mm board material ×3 Screws ×5 Dog tag sample ×2 |
| Supported Materials | |
| Compatible Materials | Wood, Plastics, Leather, Paper, Fabric, Stone, Ceramic, Acrylic, Painted Metal, Glass, Transparent Materials |
| Optional Accessories | |
| Available Add-ons | High-resolution camera |
