Carverall X1 Laser Engraving Machine

Regular price $289.00 USD
Regular price Sale price $289.00 USD
Shipping calculated at checkout.
Laser Type: Blue Laser 5W

Free shipping and Tariffs

7-Day Price Guarantee

24-hour Customer Servic

Free shipping and Tariffs

Brand: Carverall
Availability: 50 in stock
SKU: CAX1
Regular price $289.00 USD
Regular price Sale price $289.00 USD
Specification X1 Laser Engraver
Laser Wavelength Blue Laser 455nm | Infrared Laser1064nm
Laser Power Blue Laser: 5W/10W | Infrared Laser: 1W
Laser Focus Focal Length Fixed Lens
Carving Area 300×300mm
Carving Accuracy 0.01mm
Carving Speed 7000mm/min
Carving Height 45mm (Can be equipped with a height-adjustable module)
Cooling Method Air cooling
Connection Method USB, Wi-Fi, TF Card Offline
Power Supply DC24V/2.5A
Product Weight Base Unit: 3.2kg | With Stand: 7.54kg
Product Dimensions Base Unit: 528×471×168mm | With Cover: 548×477×214mm
Machine Material High-strength aluminum + ABS + Transparent protective cover (selected model)



- Engraving Material Compatibility

1064nm Infrared Laser (for Metals): Equipped with a high-performance infrared laser head, it can easily engrave on all metal and hard plastic surfaces. Ideal for commercial processing of metal products.

455nm Blue Laser (5W / 10W options): Perfect for engraving non-metal materials such as wood, leather, and painted metal. Capable of cutting 5–8mm plywood and 8–10mm pine board with ease.

- Engrave Speed and Area

- Laser Light Options

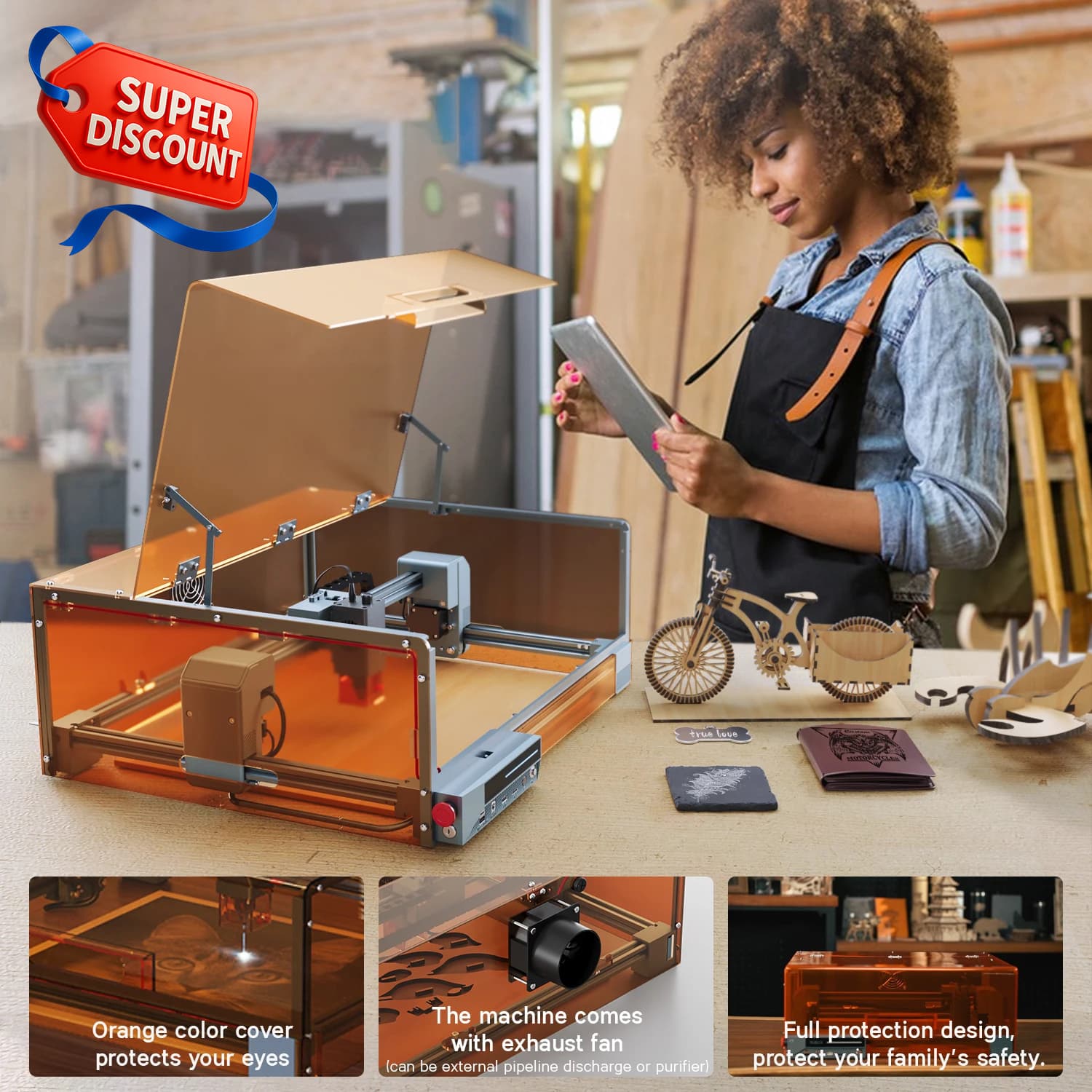

- Multiple Safety Design

1. Movement and Tilt Alarm: During operation, the machine automatically stops and alarms if it is tilted or moved.

Movement and Tilt Alarm

2. Built-in Air-Blowing Function: For higher engraving quality, preventing contamination of the laser protection lens.

Air-Blowing Function

3. Emergency Stop Button and Child Safety Lock:

Emergency Stop and Safety Lock

- Rich Extension Modules

- Easy Connection and Compatible with Other Leading Software

Easy Connection and Software Compatibility

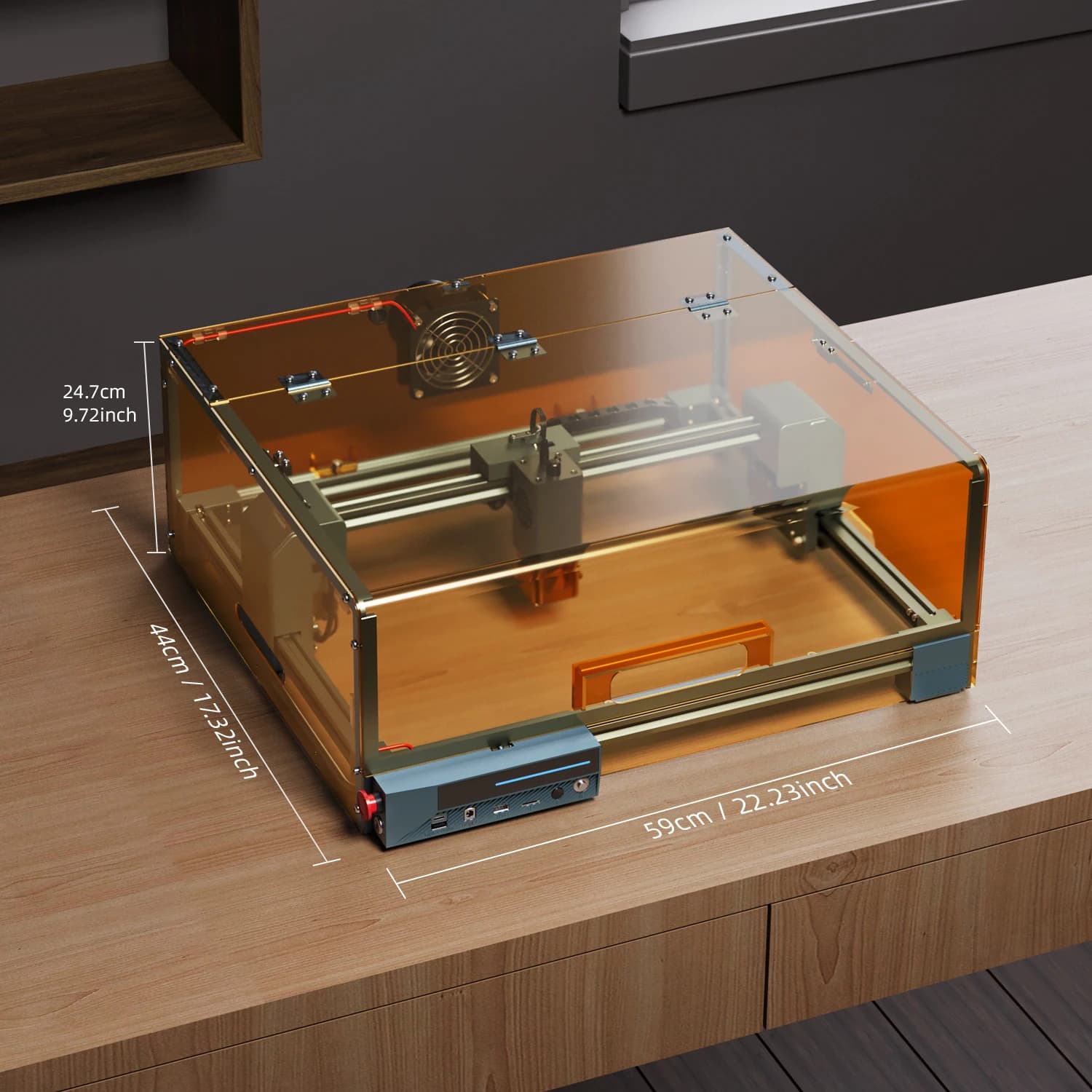

- Product Size

Product Size

The X1 series offers three powerful laser module options:

  • Blue Laser 5W / 10W: Ideal for engraving and cutting non-metal materials such as:
    • Engraving: Wood, leather, acrylic, plastic, painted metal, rubber, paper, bamboo
    • Cutting: Up to 5–8mm plywood, 8–10mm pine wood depending on the power module
  • Infrared Laser 1W (1064nm): Specialized for engraving on:
    • All types of metal (stainless steel, aluminum, brass, etc.)
    • Plastics (ABS, PC, etc.) and coated surfaces

X1 supports a wide range of popular design and control software:

  • CutLab X – Our official laser control software
  • LightBurn – Industry-standard, feature-rich laser software
  • Compatible with both Windows, macOS, Android, and iOS

The machine supports multiple connection methods:

  • USB – Direct connection
  • Wi-Fi – Wireless engraving from PC or mobile
  • TF Card – Offline job execution without a computer

X1 is designed with expandability in mind. Supported add-ons include:

  • Rotary Roller – For engraving on cylindrical objects like tumblers or bottles
  • Chuck Rotary – For more precise 360° object rotation
  • Honeycomb Panel – Provides clean cuts and smoke dissipation during cutting
  • Air Purifier – Effectively removes fumes and odors for indoor use

Yes, X1 supports offline operation via a TF card. You can prepare your design on a PC or mobile app, save it to the card, and run the engraving job without a live connection.

Absolutely. The X1 includes multiple safety features like:

  • Emergency Stop Button
  • Movement and Tilt Alarm
  • Built-in Air Assist – Prevents lens pollution, improves engraving quality
  • Child Safety Lock – Protects young users in home or school environments
