Re-DefineYour EngravingExperience
Dual Laser Options – Blue/Diode & Infrared
Processing Workable on 120+ Materials
Innovation in Motion
A1 isn’t just another laser engraver — it’s a stylish, Porable machine built for modern creators on the go.
4K Ultra-Precision Engraving for Superior Results
Laser Spot Size 0.01mm
Delivering an ultra-precise laser beam ensures highly intricate and realistic engravings on every item.
8000mm/min High-Speed Engraving Maximum Efficiency
Powered by a high-output laser module combined with industrial-grade lead screws and stepper motors, it ensures fast, stable, and highly efficient engraving at speeds up to 8000mm/min.
Direct 14cm Height Elevation — Break Through Limits
Easily adjustable in two levels, the machine supports up to 14cm height elevation. Perfect for engraving larger and taller objects, it meets diverse height requirements without compromising precision.
Seamless Compatibility & Stable Connectivity
CutLabx, which is self-developed for effortless operation, even beginners can get started quickly with ease and confidence, besides compatible with LightBurn & LaserGRBL.
Wide Range of Optional Extension Modules
Small, Smart & Strong
📋 A1 Laser Engraver Specifications
| Model | A1 |
| Laser Wavelength | Blue 455nm ｜ Infrared 1064nm |
| Laser Power | Blue 5W / 10W, Infrared 1W |
| Focusing Method | Rotary Focus Pin |
| Engraving Area | 100 × 100mm |
| Engraving Precision | 0.01mm |
| Engraving Speed | 8000mm/min |
| Max Object Height | 50mm |
| Cooling Method | Air Cooling |
| Connection Options | USB Wired / WiFi Wireless / TF Card Offline |
| Power Supply | DC 24V / 2.5A |
| Product Weight | 2.75kg |
| Product Dimensions | 232 × 293 × 228mm |
| Body Material | ABS + Reinforced Metal + Transparent Shield |
1. What materials can the A1 engrave or cut?
Engraving Capabilities:
- Blue Laser (5W/10W): Easily engraves on non-metal materials including wood, leather, rubber, plastic, paper, cardboard, fabric, coated metals, coated glass, acrylic, ceramic, and stone.
- Infrared Laser (1W): Capable of engraving on almost all hard materials, including gold, stainless steel, copper, aluminum, plastic, leather, coated glass, coated metals, acrylic, and even electronic components.
- Cutting Capabilities (Blue Laser): Cuts 5–8mm plywood and 8–10mm pine board (depending on density and material type).
2. What software and devices are supported?
The A1 offers broad software compatibility and flexible device support:
- Compatible Software: CutLabX, LightBurn, LaserGRBL
- Device Support: Works with smartphones, tablets, and desktop computers
- File Transfer Methods: USB, Wi-Fi, and TF card – supports fully offline operation
3. What optional modules and accessories are available?
A wide range of optional accessories are available to expand your capabilities:

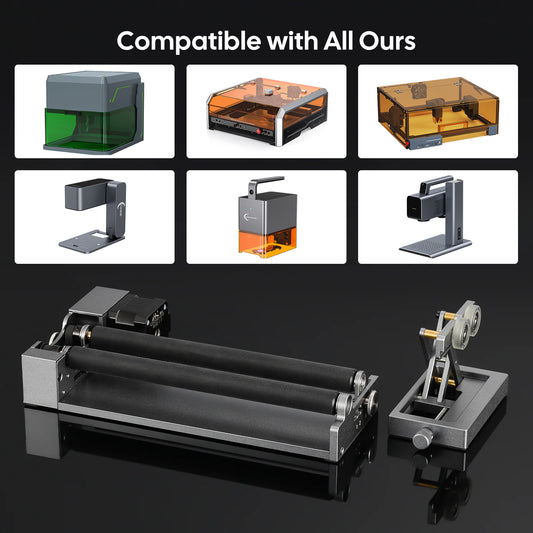

- Rotary Axis Module – Enables 360° cylindrical engraving
- Rotary Chuck Fixture – For precise object rotation and stabilization
- Smoke Purifier – Desktop mini air filtration system for cleaner, safer engraving
4. Is the A1 beginner-friendly?
Absolutely. The A1 is designed for both beginners and professionals:
- Easy-to-use software
- Plug-and-play hardware
- Stable connectivity
- Clear operating instructions
- Seamless compatibility with multiple systems
5. Does the A1 have safety protection?
Yes. Safety is a top priority for the A1:
- Full protective enclosure filters 99.7% of blue laser light and meets FDA Class 1 laser safety standards
- Equipped with emergency stop, motion detection, and child lock features
- Enclosure allows safe indoor use, even around children or pets
6. What laser modules are compatible with the A1, and how do I switch between them?
The A1 laser engraver supports three interchangeable laser modules: Diode 10W, Diode 5W, and Infrared (IR) 1W. Switching is simple — just detach the current laser head and install the one you need. No tools or complex setup required.
7. Can I use the A1 laser engraver with the lid open?
Yes, the A1 does not require the lid to be closed during operation. You are free to open or close the lid while the machine is running. However, for your safety, please avoid touching or placing your hands near the laser beam while it is active.
8. What’s the difference between a 5W and 10W diode laser?
Their key differences lie in power, engraving speed, cutting ability, and material compatibility.
| Feature | 5W Diode Laser | 10W Diode Laser |
|---|---|---|
| Power Output | Lower power, ideal for engraving | Nearly double the power, better for cutting |
| Engraving Capability | Fine engraving on soft materials like wood & leather | Faster, deeper engraving on more materials |
| Cutting Ability | Up to 3mm wood, basic acrylic cutting | Up to 8mm wood, clean 3mm acrylic cutting |
| Speed | Slower processing, may need multiple passes | Faster results with fewer passes |
| Precision | Slightly finer for detailed engraving | Still precise, but spot size may be slightly larger |
| Size & Power Consumption | Compact and energy-efficient | Larger module, needs stronger cooling |
| Recommended For | Hobbyists, DIY, education, small crafts | Pro users, small businesses, batch production |
👉 Tip: Choose 5W for compact, detailed engraving. Choose 10W for more power, speed, and cutting versatility.
