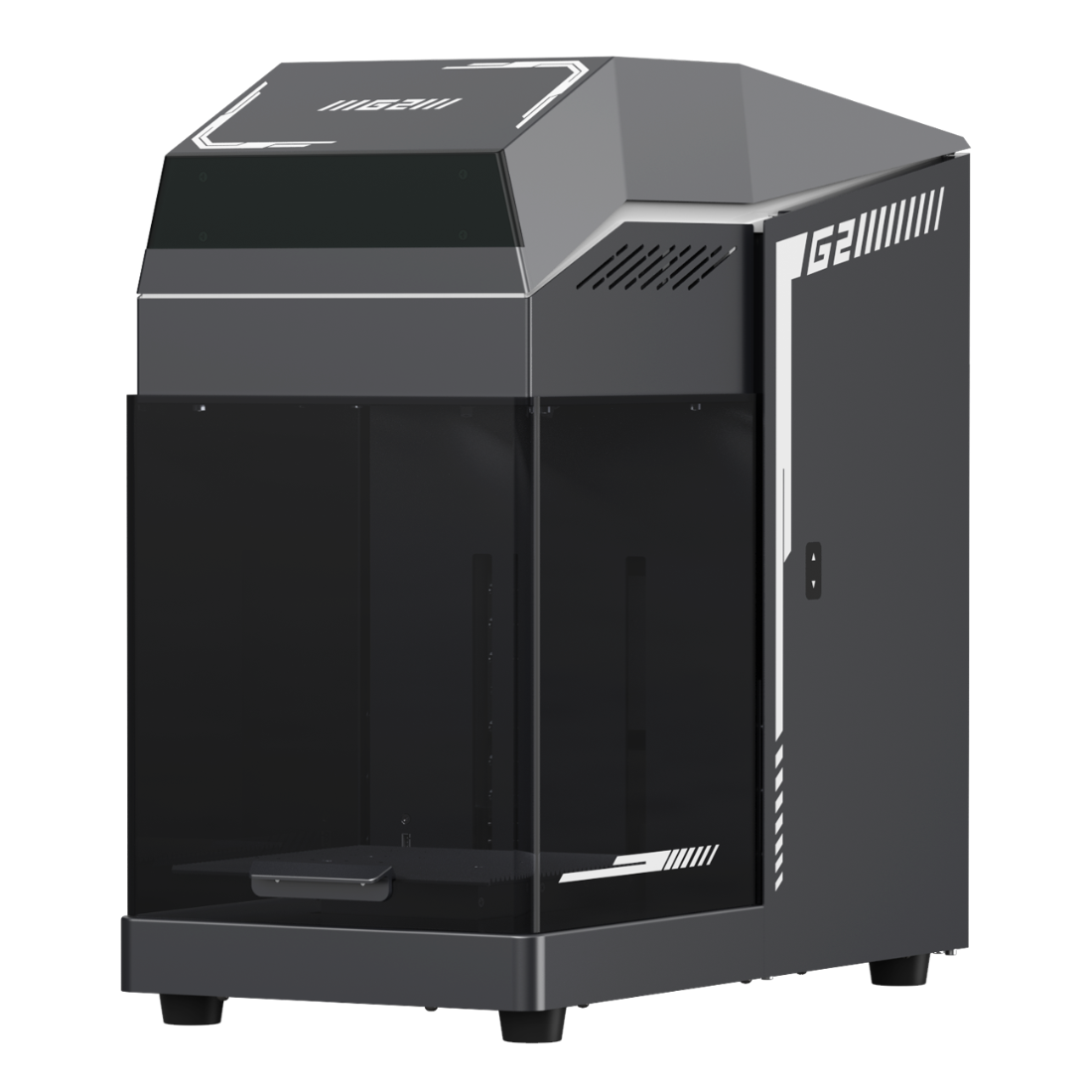

CarverAll G2
UV Laser Marking Machine

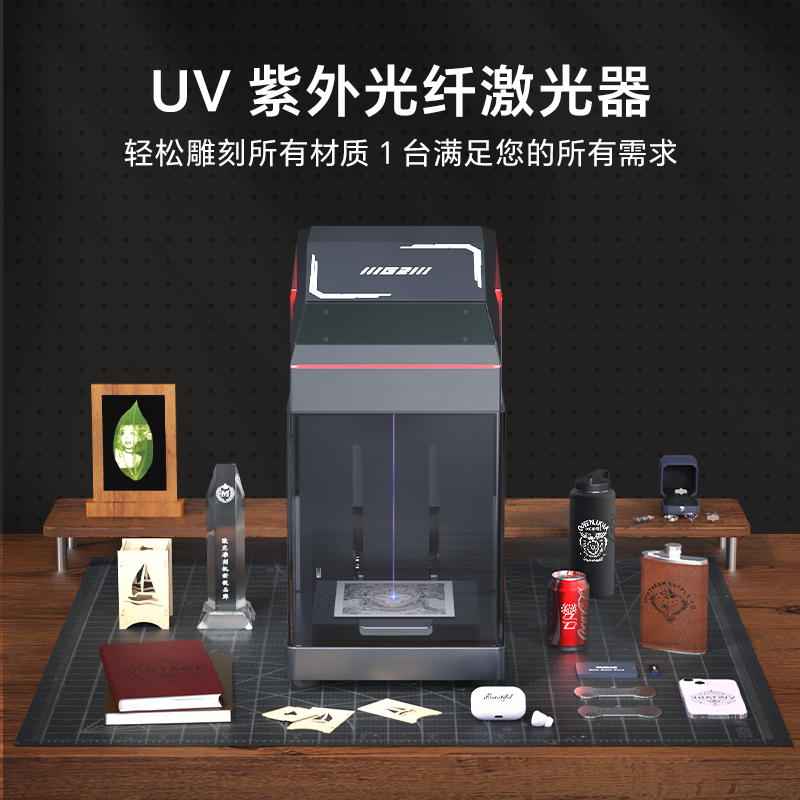

UV Fiber Laser SourceThe Ultimate Laser Workhorse
The Ultimate Laser Workhorse
From Metals to Plastics, One Machine Does It All
Precision Metal Mastery
All metal materials such as stainless steel, copper, aluminum,
Stainless Steel
Gold
Silver
Aluminum
Platinum
Brass
Titanium
Precision Metal Mastery
All metal materials such as stainless steel, copper, aluminum,
Stainless Steel
Gold
Silver
Aluminum
Platinum
Brass
Titanium

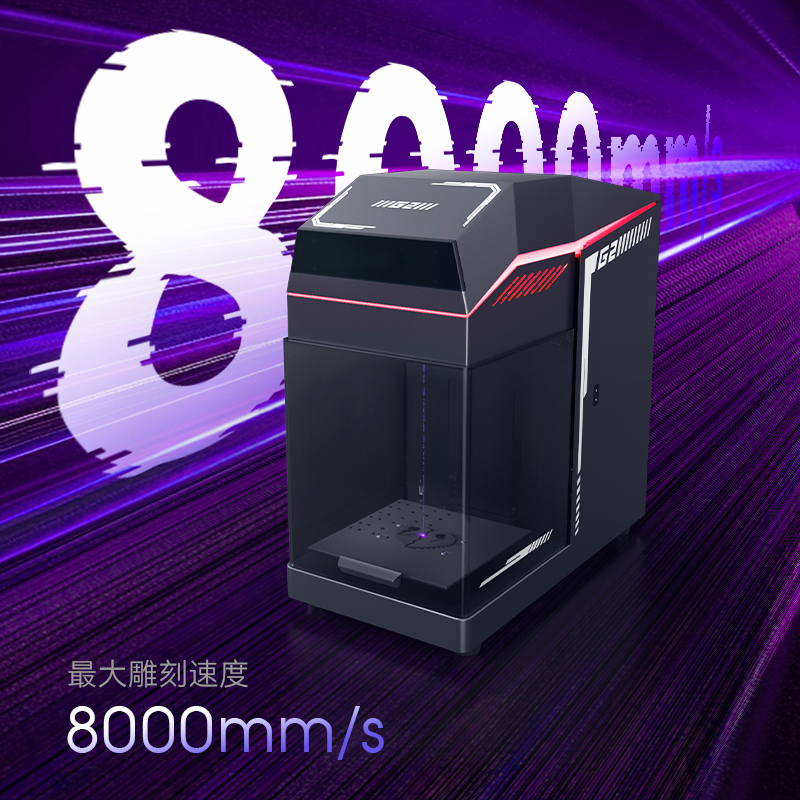

High-speed GalvanometerFull Processing Efficiency
Maximum engraving speed is 8000mm/s, small size and fast speed,
enable the overspeed mode of efficient production

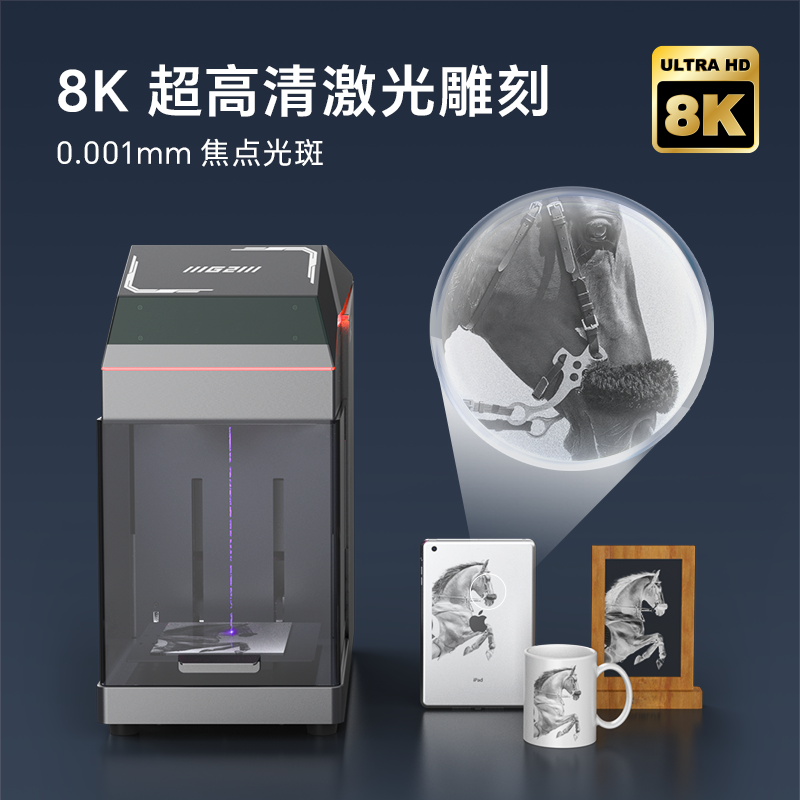

8K Ultra-Precision EngravingCrystal-Clear Detail Reproduction
0.001mm (1μm) Focal Precision, 100% Complex Pattern Replication
All The Engraving Effects Are Wonderful
200*200mm Work Area withUnlimited Engraving Potential
Pre-Engineered Fixture Holes for Rapid Positionin, Batch Processing Capability
Multi-Object Alignment Bars Support Offline Engraving
*Modular Size Options: 110*110/150*150/200*200mm Configurations Available,
Contact for Tailored Solutions
Double Red Light Real-Time Positioning Preview
2.Light spot overlap
1.Electric lift
Double Red Light Focus
The electric lifting workbench screw transmission is combined with double red light focus, and the two red lights gather at one point is the focus position
Smart Safety Assurance SystemEnclosure with 99.7% Laser Filtering Rate
Certified Laser Safety, Laser-Grade Acrylic Enclosure with Full-Seal Design
CE/FDA Certified , Zero Harm to Eyes & Skin
Nano UV-Cold Laser Source
Zero-Substrate Damage
Surface Integrity
Contactless Laser Marking Technology, Micro-Thermal Impact , No Deformation/Burning

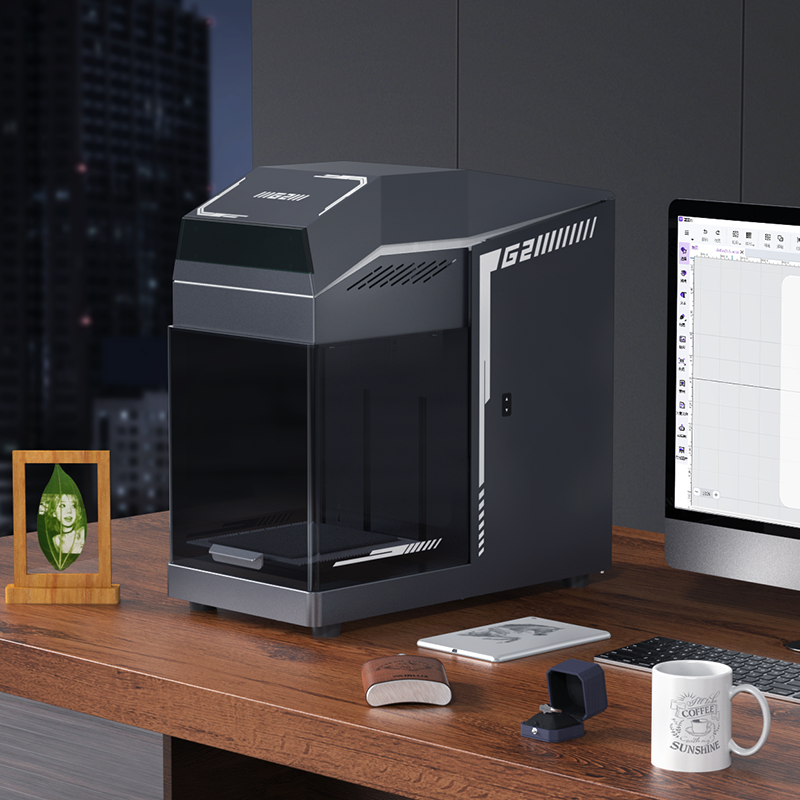

Multi-Device Connectivity
User-Friendly Operation
Precision Metal Mastery
All metal materials such as stainless steel, copper, aluminum,

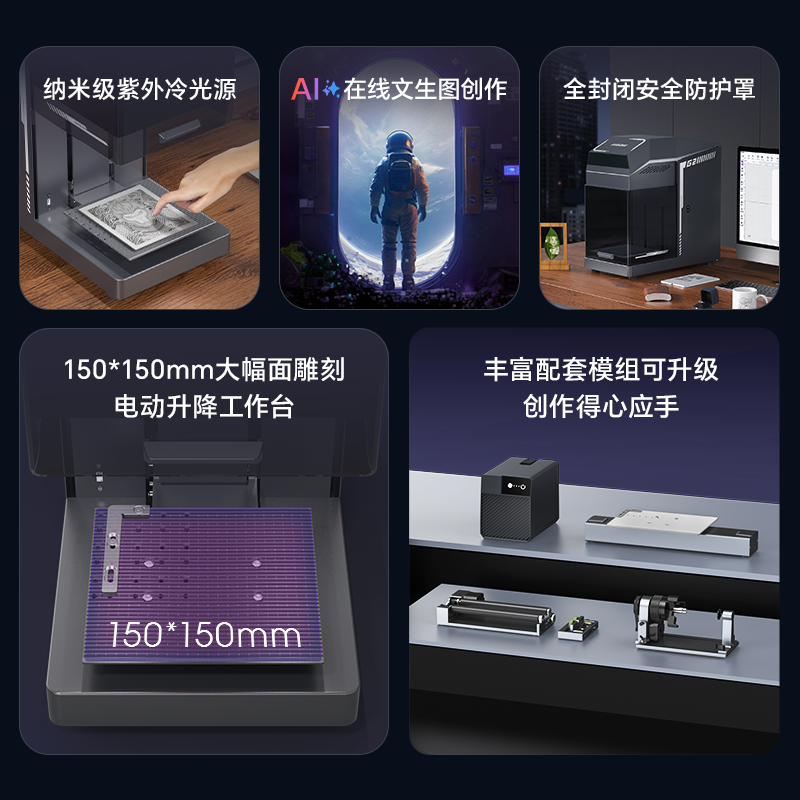

Rich Accessories Can
Be Upgraded
Enhanced Creative Capabilities
Parallel Shaft
Mini Purifier
Rotating Roller
Rotating Fixture
Specifications
Type
Details
Laser Wavelength
355nm UV
Laser Power
3W / 5W
Laser Focus
Double Red Light Electric Focusing
Engraving Area
110×110 / 150×150 / 200×200mm
Engraving Precision
0.001mm
Engraving Speed
8000mm/s
Engraving Height
250 / 200 / 140mm
Heat Dissipation
Air-cooled
Connection Method
USB / WiFi / TF card
Voltage
AC100-240~50-60Hz
Product Weight
22kg
Dimension
265×530×550mm
Material
High Strength Metal + Transparent Cover
Frequently Asked Questions
1. What makes G2 different from traditional fiber or diode laser engravers?
G2 is a high-precision UV laser engraver designed to outperform traditional fiber and diode lasers in material compatibility. It excels on sensitive materials like glass, ceramic, and plastics, offering clean, cold-marking results with minimal thermal damage.
2. What materials can the G2 engrave or mark?
The G2 UV laser is extremely versatile and supports marking or engraving on a wide range of materials:
- Mark: Glass, ceramic, metal (some), paper, garments, fruits, wood
- Engrave & Mark: Plastics, leather, some stones
- For specific material compatibility, feel free to contact our support team.
3. What is the engraving area of the G2?
The G2 comes with a default 70mm x 70mm lens and an optional 150mm x 150mm lens for larger projects.
4. Is G2 easy to set up and use?
Yes. G2 features a plug-and-play design. The entire setup process — including unboxing, connection, and initial configuration — typically takes less than 20 minutes. A user-friendly interface and comprehensive user manual make it ideal for both beginners and professionals.
5. What is the warranty policy for the G2?
G2 includes a 1-year limited warranty, covering any manufacturing defects in materials or workmanship. Full details can be found in the user manual or by contacting our customer support.
6. Can I return the G2 if I’m not satisfied?
Yes. We offer a 15-day return policy from the date of delivery. If you are not fully satisfied, you can return the product in its original condition for a full refund. Please refer to our return policy page for complete terms.
7. What is the maximum cutting thickness for the G2?
As a UV laser engraver, the G2 is optimized for marking and engraving rather than deep cutting. The effective depth depends on the material type and laser dwell time.
8. Are there upgrades or new modules available for G2?
We continuously innovate our product line. Please check our official website or contact our sales team for updates on new laser modules or G2 accessories.
